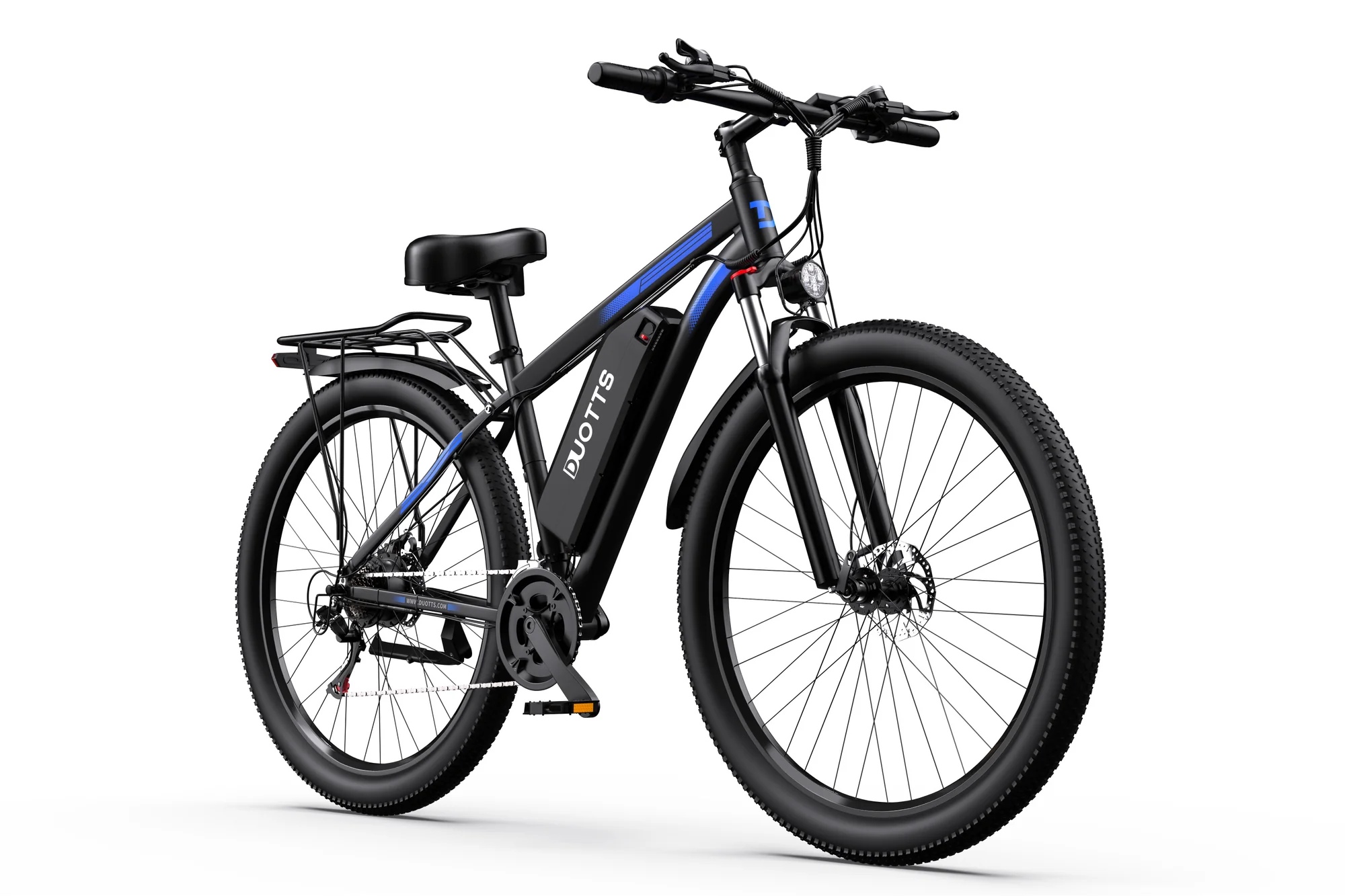

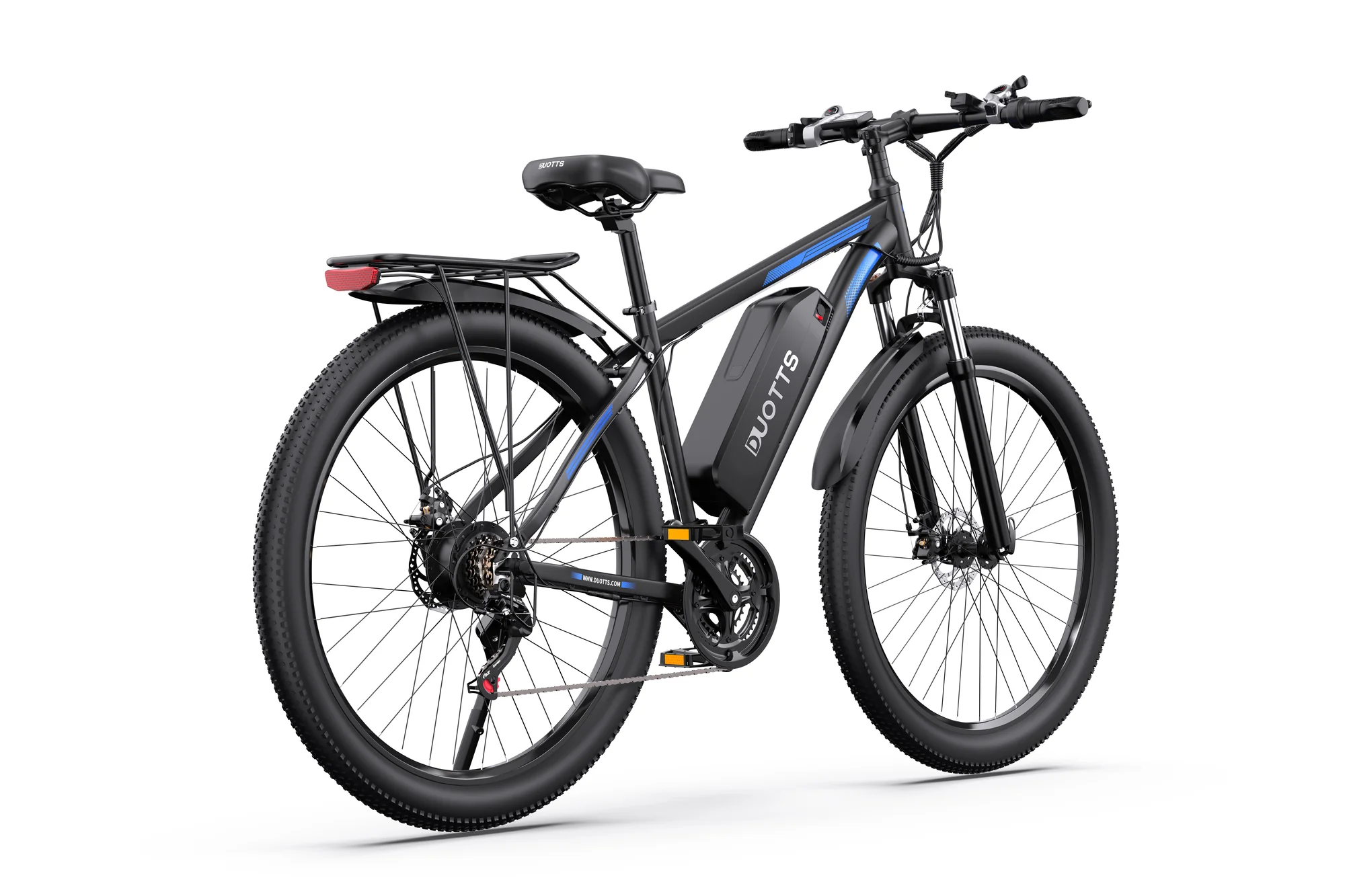

DUOTTS C29 Electric Bike 750W Motor 48V 15Ah battery 2.4" HD display, Bluetooth-enabled for Duotts App Top Speed 25 km/h
1/3
DUOTTS C29 Electric Bike 750W Motor 48V 15Ah battery 2.4" HD display, Bluetooth-enabled for Duotts App Top Speed 25 km/h
1/3

DUOTTS C29 Electric Bike 750W Motor 48V 15Ah battery 2.4" HD display, Bluetooth-enabled for Duotts App Top Speed 25 km/h

￡849.00
Battery:  Single Battery
Quantity

Description

Electronic Spec

Motor48V 750W motor

Torque65 Nm

Battery48V 15Ah battery

Battery Charger54.6V 2A charger

Charging Time6–8 hours

Display2.4" HD display, Bluetooth-enabled for Duotts App

Max RangeUp to 100 km in assist mode (actual performance varies with temperature, terrain, rider weight, etc.)

Top Speed25 km/h

Max Climbing Angle30°

Components Spec

FrameAluminium alloy frame

HandlebarAluminium alloy handlebar, 68 cm

CrankAluminium alloy crank, 170 mm

Transmission SystemShimano Tourney 3×7-speed derailleur system

ForkSingle-crown aluminium suspension fork, 100 mm travel, non-adjustable, with lockout

Rear ShockNot specified

Front BrakeDisc brake, 160 mm rotor

Rear BrakeDisc brake, 160 mm rotor

Front WheelChaoyang 29" x 2.125" tyre, 30 TPI, with inner tube

Rear WheelChaoyang 29" x 2.125" tyre, 30 TPI, with inner tube

Headlight300 LUX headlight, manually operated

TaillightNot specified

PedalAluminium alloy pedals

MudguardPlastic mudguards

Rear RackSteel rear rack, max load 25 kg

General Spec

Bike Weight26.5 kg

CertificationCE (EN15194) certified

Product Size1860*1080*680 mm

Pedal Assist SystemSpeed sensor

Pedal Assist Level0-5 levels

Recommended Rider HeightSuitable for riders from 170 cm to 200 cm

Max Load Capacity150 kg

Ingress Protection RatingIPX4

Operating Temperature-10°C to 40°C

Package IncludeCharger, user manual, 16-in-1 tool, thumb throttle, pedals, quick-release axle, motor axle protectors, air pump, phone bag
